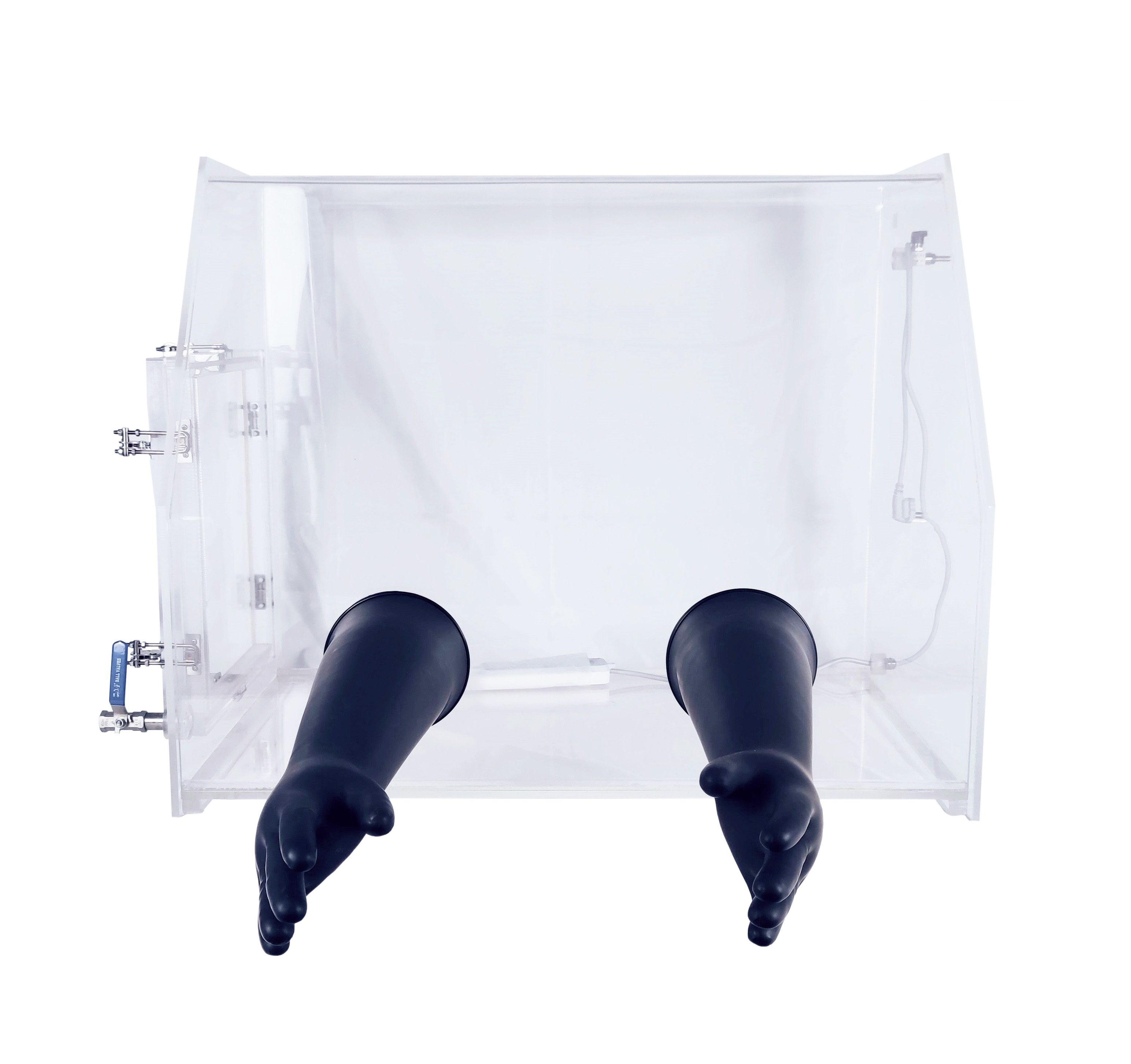

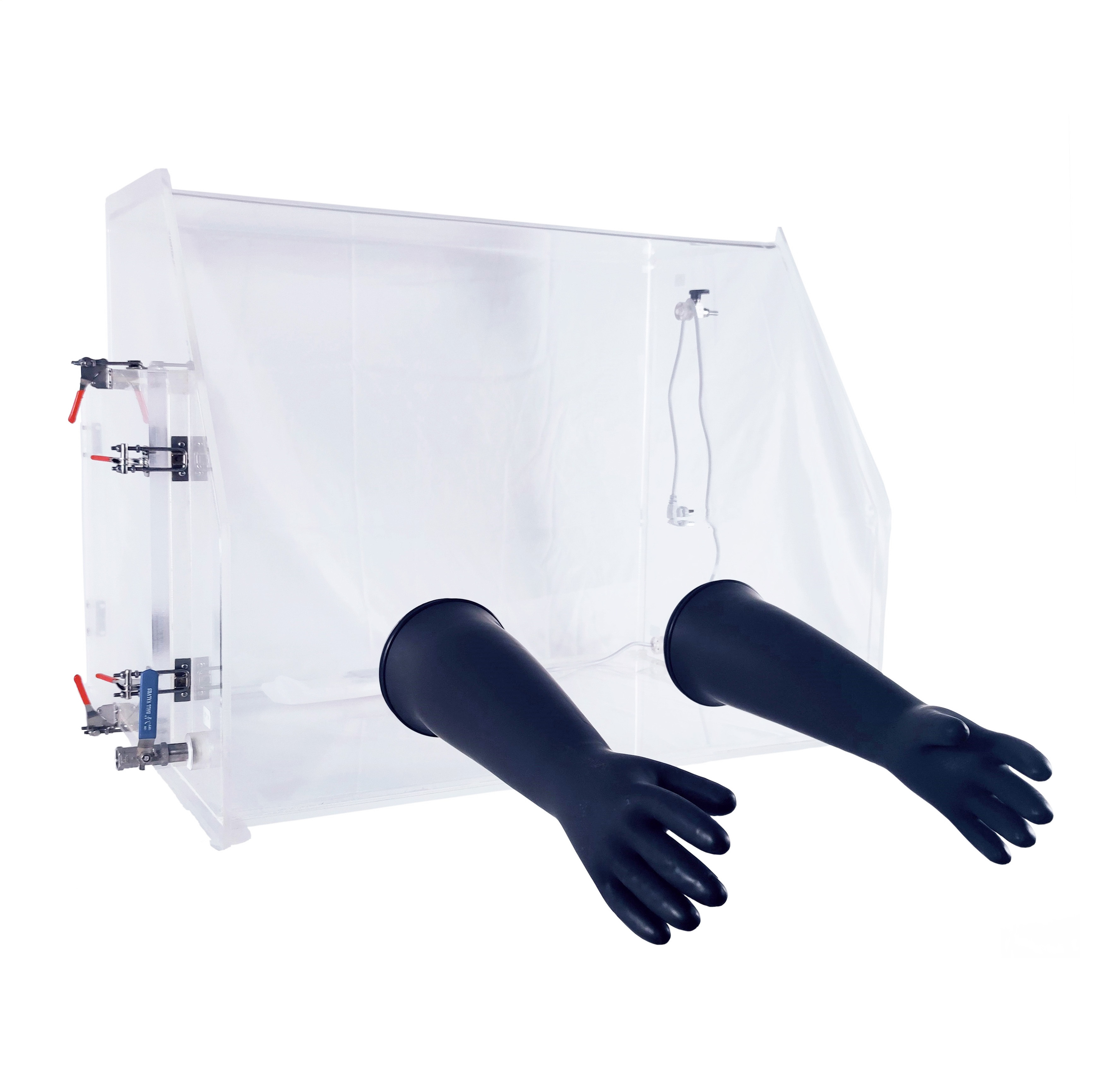

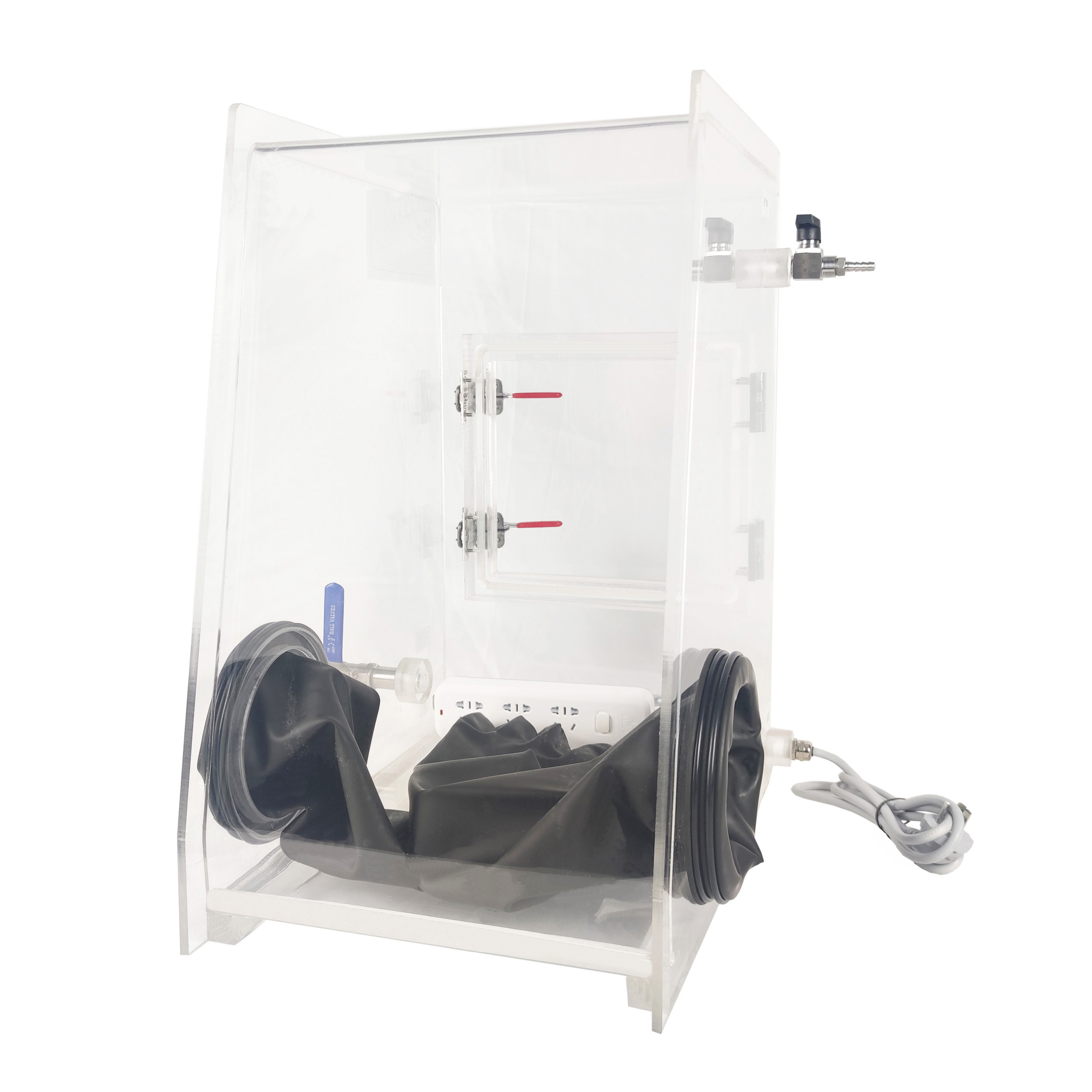

with 360 degree no dead corners and all-round transparency, making it convenient to observe the experimental status at any time.
Type A: Acrylic glove box size (Type A is without transition compartment)
|
Model |
Main body size (LxDxH) |
Transition compartment size(mm) |
Left side square door size(DxH) |
Box thickness |
Left side square door thickness |
Square door flange thickness |
|
MG-01A |
300*400*500mm |
/ |
/ |
6mm |
20mm |
20mm |
|
MG-02A |
700*450*550mm |
/ |
300*300mm |
6mm |
20mm |
20mm |
|
MG-03A |
800*550*600mm |
/ |
350*350mm |
6mm |
20mm |
20mm |
|
MG-04A |
900*500*500mm |
/ |
350*350mm |
6mm |
20mm |
20mm |
|
MG-05A |
900*600*700mm |
/ |
400*400mm |
6mm |
20mm |
20mm |
|
MG-06A |
1000*750*700mm |
/ |
500*500mm |
6mm |
20mm |
20mm |
|
MG-07A |
1100*650*600mm |
/ |
400*400mm |
6mm |
20mm |
20mm |
|
MG-08A |
1200*800*700mm |
/ |
500*500mm |
6mm |
20mm |
20mm |
